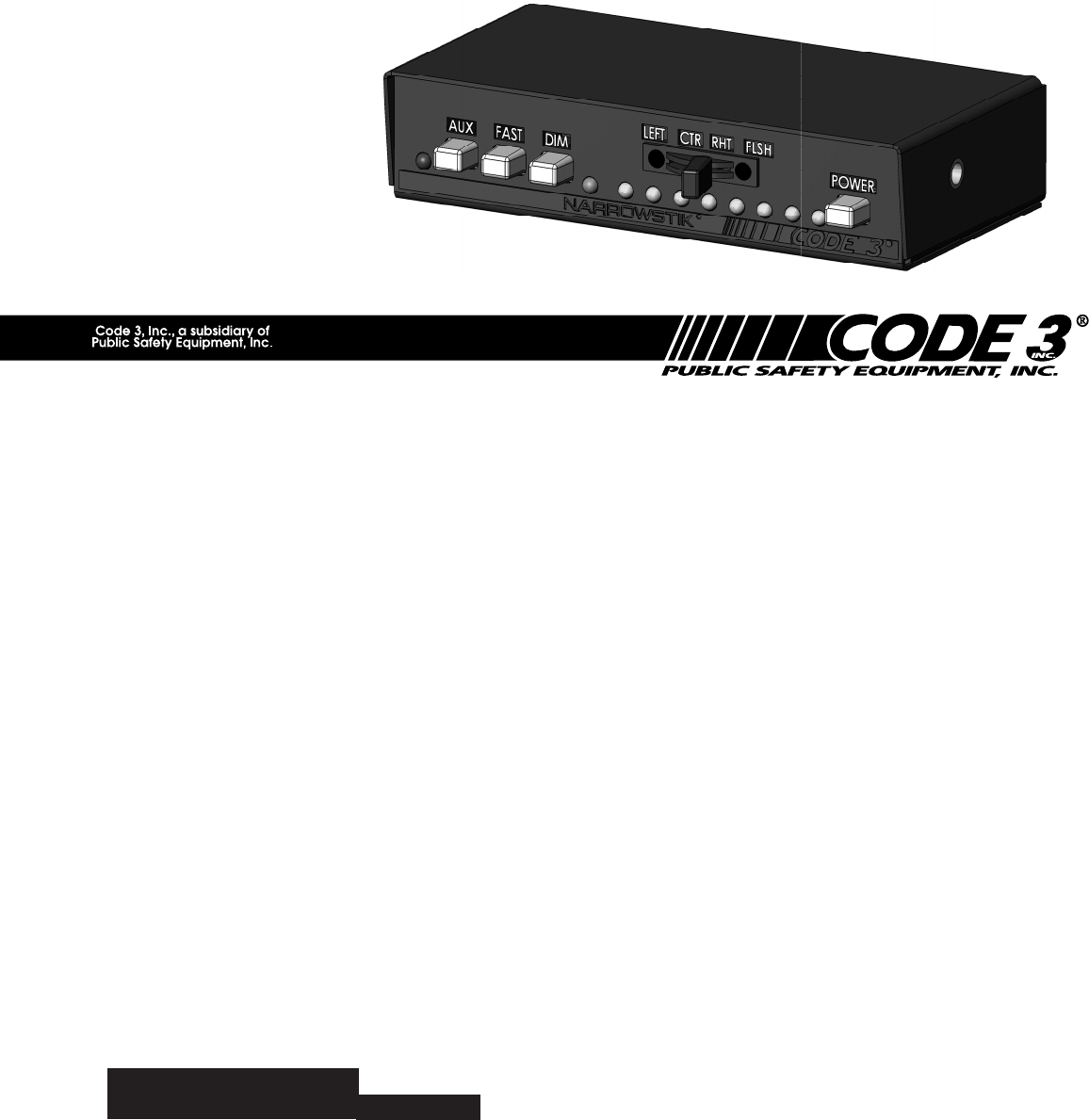

Code-3 TriCore NarrowStik Controller Uživatelský manuál

1Contents:Introduction (with warnings) ...2Unpacking & Pre-installation ...

10Figure 5 Cont: AUX BLUE (FOR END FLASH USE ONLY) YELLOW

11 EF 6 5 4  2 1 EF 5 Output / Head Operation5 Output / Head operation can be determined by observing the Front Panel LED indi

12Table 1 - Signal options for LED Narrowstik™ / LC-Stik / LightbarsSlide Switch PositionLEFT ( LFT )

13Notes:

14Notes:

15Notes:

16Revision 0, 12/2009 - Instruction Book Part No. T15230©2009, Co

2IntroductionThe controller features eight independent outputs and four operating modes (Left , Center-out, Right , Flash) and is specically designed

3MechanicalDepth: 3 1/2 inches not including connectorWidth: 6 1/2 inchesHeight: 1 1/2 inchesWeight: 1.2 lbs.OperationThe following s

4POWERThe POWER button turns the control head ON/OFF and is a push-on / push-off switch. When the POWER button is activated the control head will perf

5LED Module Control Outputs (Brown,Orange,Tan,Violet,Green,Grey,Yellow,Blue)These eight outputs provide independent control of each LED module in the

6Figure 3- Rear panel connections and wiring label located on bottom of the control head. Botto

7Red, Red / White LED module Power +12VWhite DIM Control wireBrown Orange Tan INDIVIDUAL Violet

8Control Head ProgrammingIntroductionThe 8 Output LED Narrowstik™ controller was designed to offer independent 8 output control along with user progra

9When the FLSH function is selected the same procedure applies as above, but you will notice in Table 1, that the patterns are not grouped
