8

9

4

7

6

1

5

3

2

8

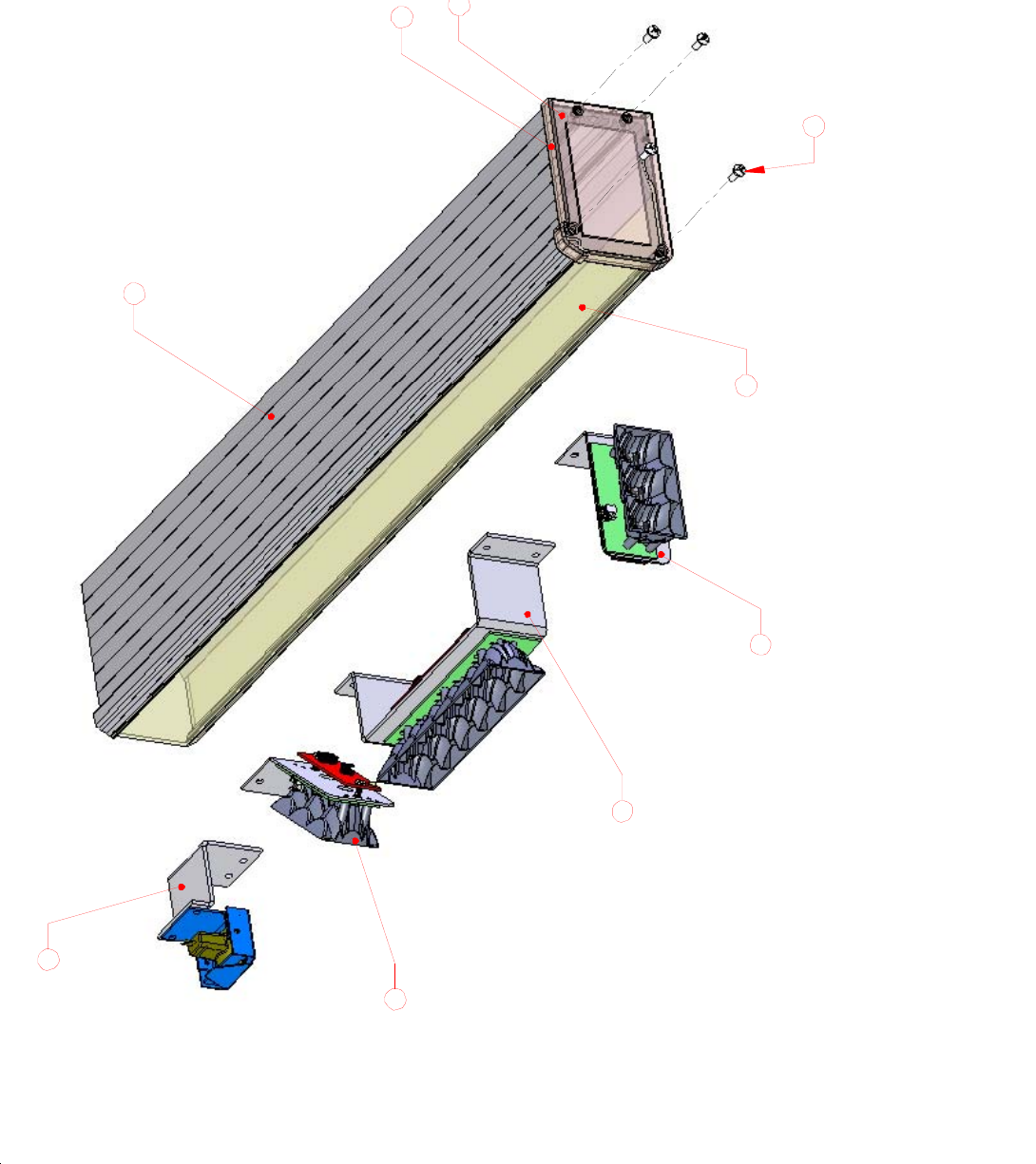

Ref. Part No. Description

1 See Table 2 Aluminum Frame

2 T08871 Right Endcap

T08872 Left Endcap

3 T16322 Endcap Gasket

4 T15759 Endcap Screw

5 See Table 3 Front Lens

6 Call Factory End facing lighthead assembly

7 Call Factory Front facing lighthead assembly

8 Call Factory 45 degree lighthead assembly

9 S27166 35 Watt Load light assembly

Table 2

T16311 13” Mounting Frame

T16312 23” Mounting Frame

T16313 36” Mounting Frame

T16314 49” Mounting Frame

T16315 62” Mounting Frame

T16316 75” Mounting Frame

T16317 88” Mounting Frame

Table 3

T16331 13” Front Lens

T16332 23” Front Lens

T16333 36” Front Lens

T16334 49” Front Lens

T16335 62” Front Lens

T16336 75” Front Lens

T16337 88” Front Lens

1 2 3 4 5 6 7 8 9 10 11 12
