5

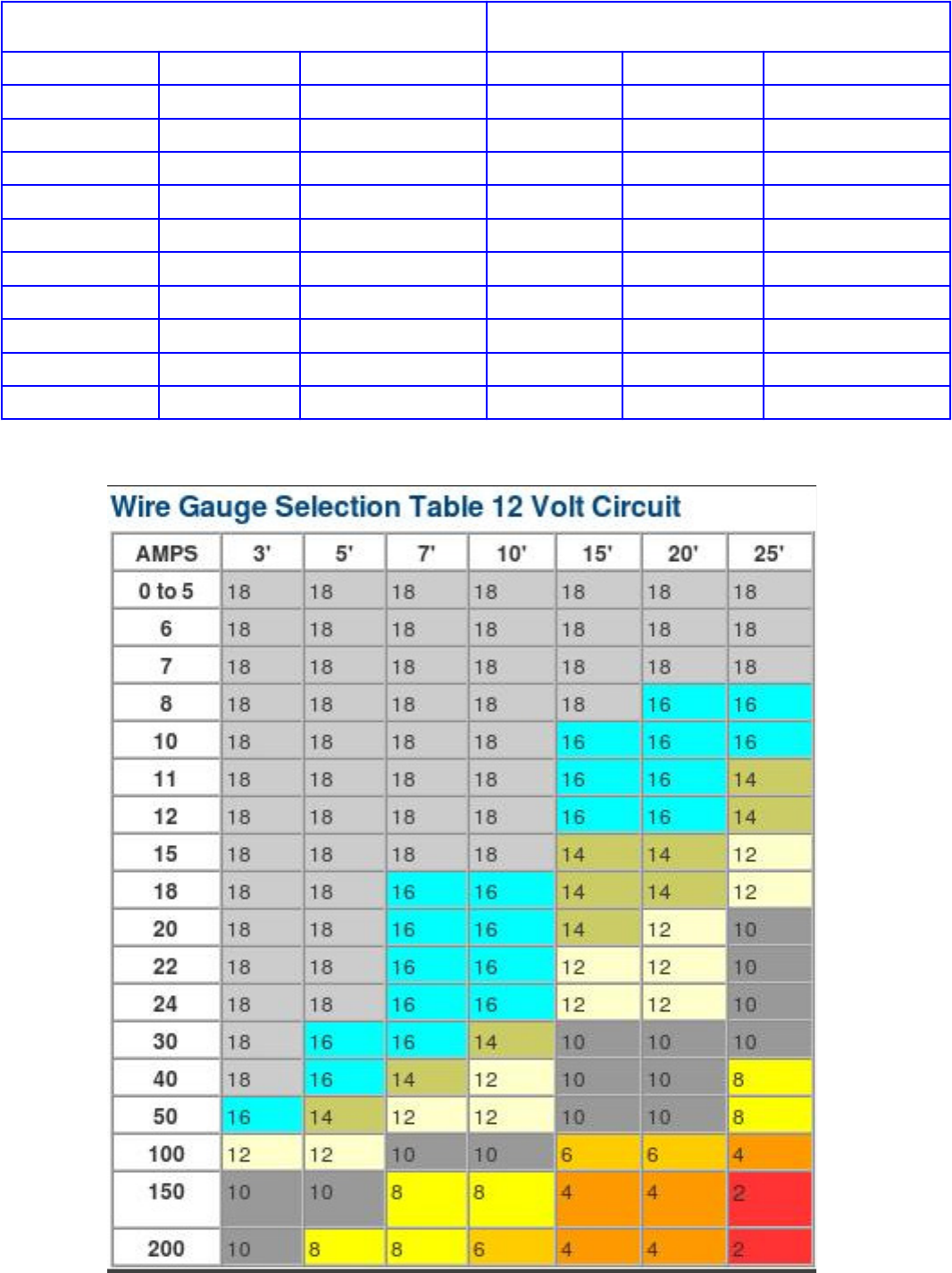

XT4 LIGHT HEAD WIRE COLOR TABLE

THE BLACK WIRE IS ALWAYS THE GROUND WIRE

LED COLOR DUAL / SINGLE POWER WIRE COLORS

RED / AMBER DUAL RED / YELLOW

BLUE / AMBER DUAL BLUE / YELLOW

RED / BLUE DUAL RED / BLUE

BLUE / WHITE DUAL BLUE / WHITE

RED / WHITE DUAL RED / WHITE

AMBER / WHITE DUAL YELLOW / WHITE

BLUE SINGLE RED

RED SINGLE RED

AMBER SINGLE RED

WHITE SINGLE RED

PAR36 LIGHT HEAD WIRE COLOR TABLE

THE BLACK WIRE IS ALWAYS THE GROUND WIRE

LED COLOR DUAL / SINGLE POWER WIRE COLORS

BLUE / WHITE DUAL BLUE / WHITE

RED / WHITE DUAL RED / WHITE

RED / BLUE DUAL RED / BLUE

BLUE / AMBER DUAL BLUE / YELLOW

RED / AMBER DUAL RED / YELLOW

RED SINGLE RED

BLUE SINGLE RED

WHITE SINGLE RED

AMBER SINGLE RED
