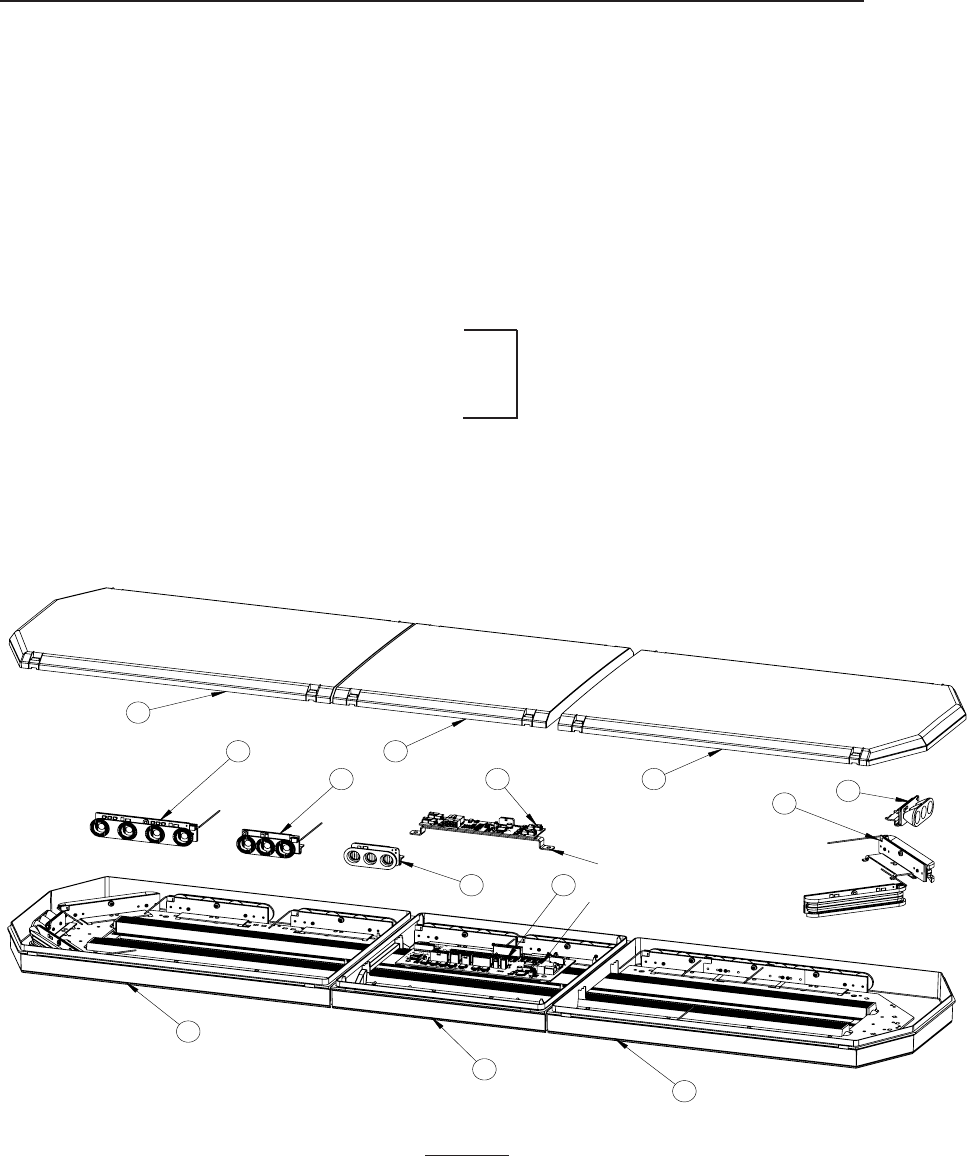

Parts List & Exploded View

(Reference numbers identify items shown in Figure 11)

Ref No. Description Part No.

1 Bottom Outboard Lens - Clear T02361

2 Bottom Center Lens - Clear T02371

3 Outboard Lens Cap

Clear T03271

Red T03272

Blue T03273

Amber T03274

Black T03278

4 Center Lens Cap

Clear T03281

Red T03282

Blue T03283

Amber T03284

Black T03288

5 4LED Directional Module

6 6LED Corner Module

7 3LED Takedown/Alley Module

8 3LED Directional Module

9 21TR

Central Controller T11568

10 21TR Plus

Central Controller (shown in installed location) T11564

Call Factory

21TR Central Controller Shown

21TRPlus Central Controller Shown

as installed

FIGURE 11

Troubleshooting

All lightbars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life

of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the

factory technical help line at 314-996-2800.
